Balanceren industrie van: ventilator, electrisch- rotor, riemschijven, koppelingen,..

Mail to : dynamequil@gmail.com

Site: http://www.dynamequil.com

Blog : http://www.dynamequil.blogspot.be/

Tel & fax: 0032 2 648 69 78

In 2 vlakken dynamisch te balanceren brengt u aan :

Meer levensduur, prestatievermogen en nauwkeurig van het werk .

Minder trillingen en slijtage van lagers.

Turbinen, rotoren, riemschijven, elektrischerotoren, molensteen, schroeven,

krukassen, CNC outillage, pompwielen, centrifugeuses, gyroscopen, vliegwielen ...

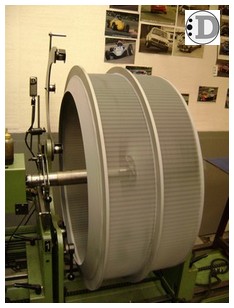

Machine: SCHENCK

Alle stare stukken van 100 gr. tot 350 kg.

Maxima lengte : +/- 2300 mm.

Maxima diameter : 1250 mm.

G 6.3 = Normal quality. Van 50 tr/min > 30.000 rpm.

G 2.5 = Precision quality. Normen : ISO 1940/1+2. - VDI 2060 - ISO 8821.

G 1 = High precision

G 16 : Rotating and oscillating motor-parts, propshafts, parts of crusching

machines and agricultural machines.

G 6.3 : Propshaft with special requirements, parts of process engineering, fans,

centrifugal drums, crankshafts, flywheels, machine tool parts, standart

electric motor armatures.

G 2.5 : Gas-and steam turbine rotors, blower turbine rotors, turbo generator rotors,

Machine tools drives, medium and larger electric motor armatures with

special requirements, small motor armatures.
